Lightplane 3.5 Outer Arc

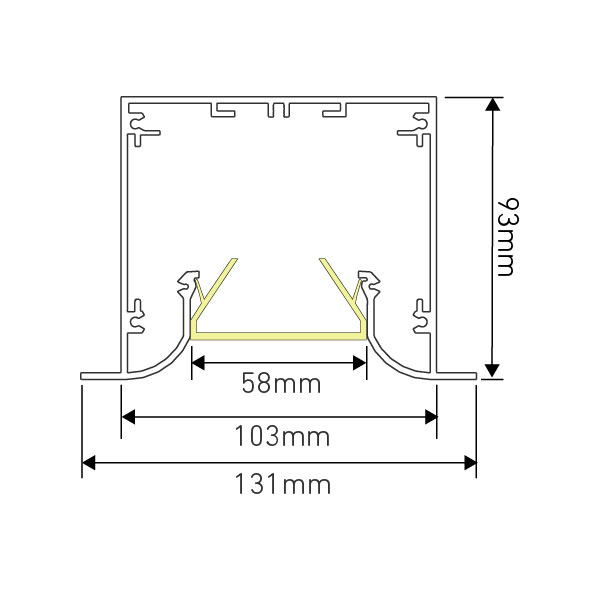

Lightplane Recessed 3.5 Outer Arc is a large recessed slot light with a trim and curved, convex interior sides leading to a slightly recessed lens. The luminaire can be installed both vertically and horizontally to form continuous or individual rows. Available with several LED lamping options including multiple outputs, CCTs, tunable white, and colour-changing RGB+White. A Low UGR option is available with a prismatic lens.

Key Features

  • Lens Design: Slightly recessed lens
  • Mounting Options: Available as individual fixtures, continuous runs, or configured shapes

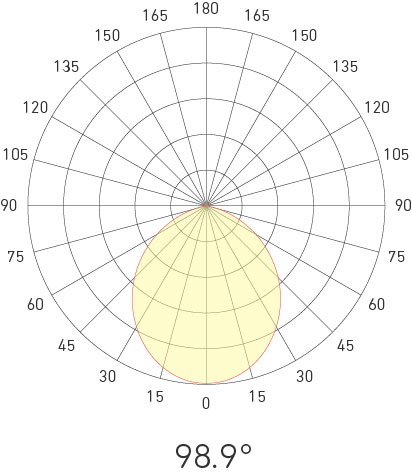

  • Light Distribution: Direct distribution
  • Photometric Data: All LDT/IES files accessible via online configurator
  • Dynamic Lighting: Tunable white and RGBW options available
  • Control Gear: Integral control gear included
  • Control Protocols: Supports DALI, 1–10V, phase dimming and wireless
  • Optics:, Prismatic diffuser and softening lens for low glare (UGR <19), Suitable for WELL-compliant designs
  • Dimming: Smooth dimming down to 0%
  • Light Quality: <1% output ripple current ensures superior visual comfort
  • Sensors: Full range of integrated sensors, including DALI/DSI digital dimming and daylight harvesting
  • Finishes: RAL colours, special powder coatings, metal plates, and acoustic finishes available
  • LED Options: Premium and standard options
  • Add-ons & Extras: Integral emergency lighting, Power over Ethernet (PoE)
