Lightplane 45 LED

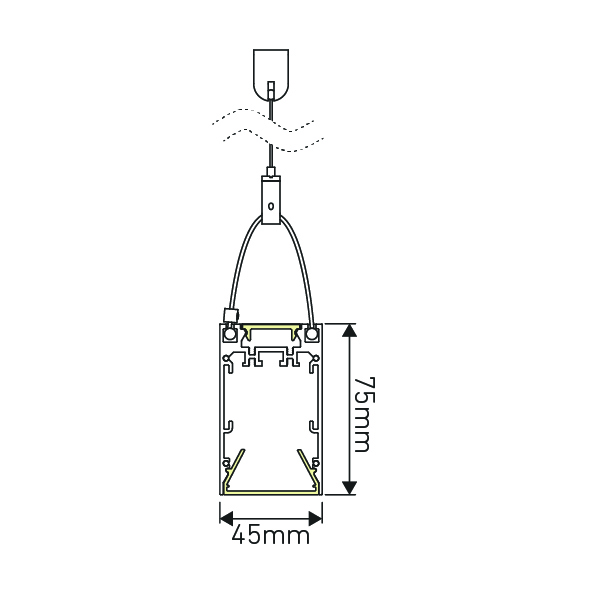

Lightplane 45 is a sleek and innovative lighting platform. Its 45mm-wide linear system seamlessly integrates continuous opal or prismatic light ribbons, advanced optics in a variety of colors and beam angles, and Powergear's 3-circuit or 3-circuit DALI track. The luminaire is available in multiple mounting options and offers a full range of power outputs, CCTs, and CRI options.

Key Features

• Lens Options: Low glare Prismatic and Opal Diffuse

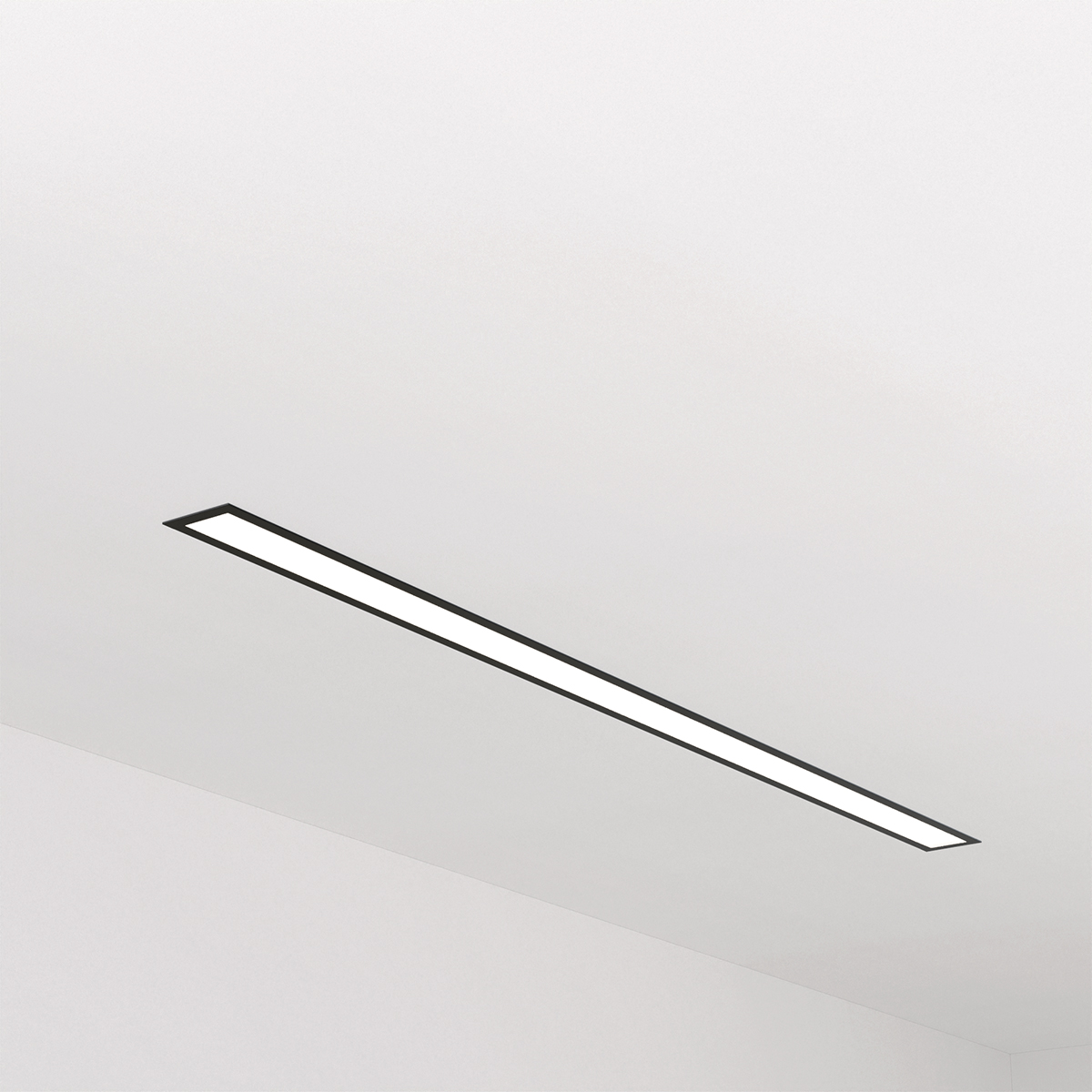

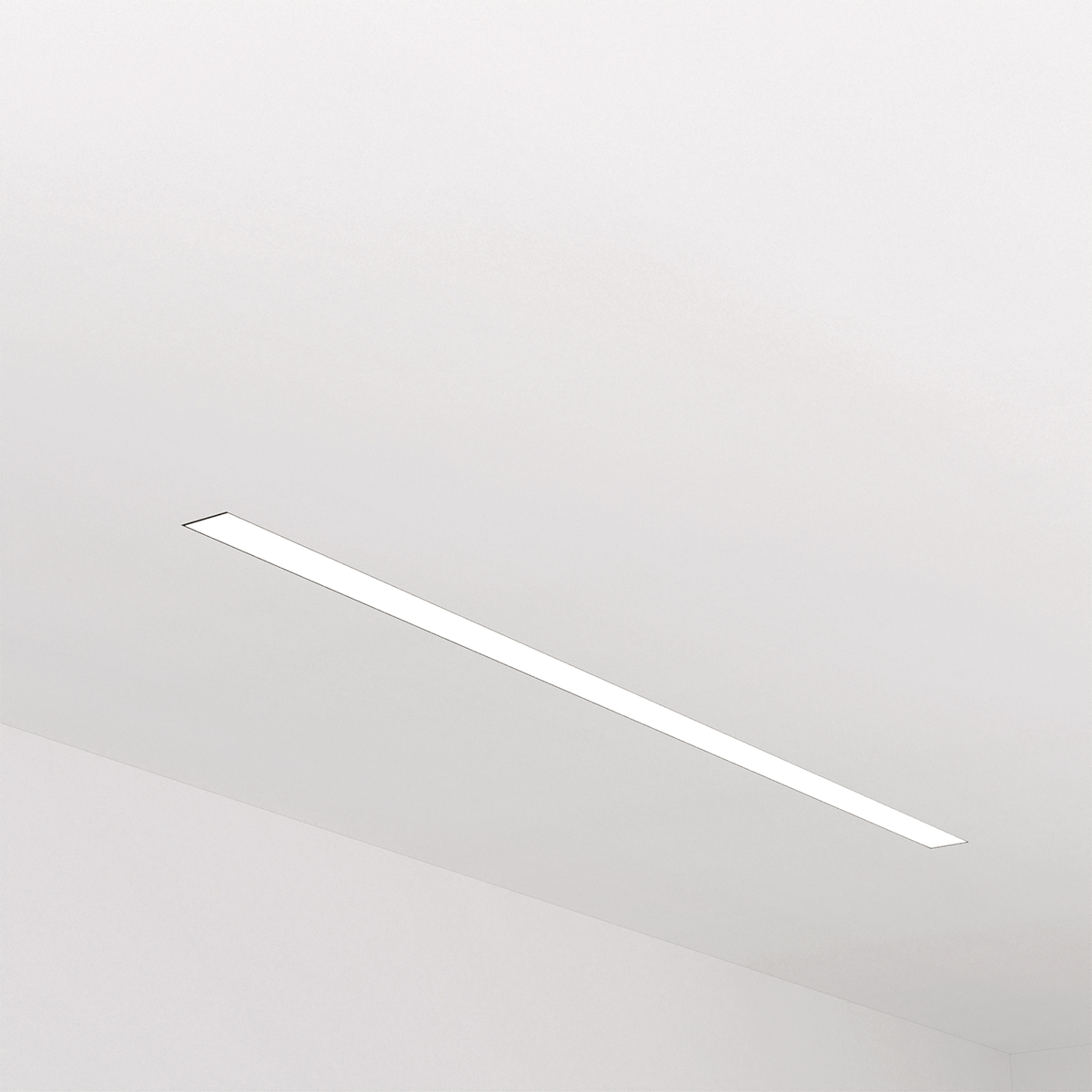

• Configurations: Individual, continuous run, or configured shape

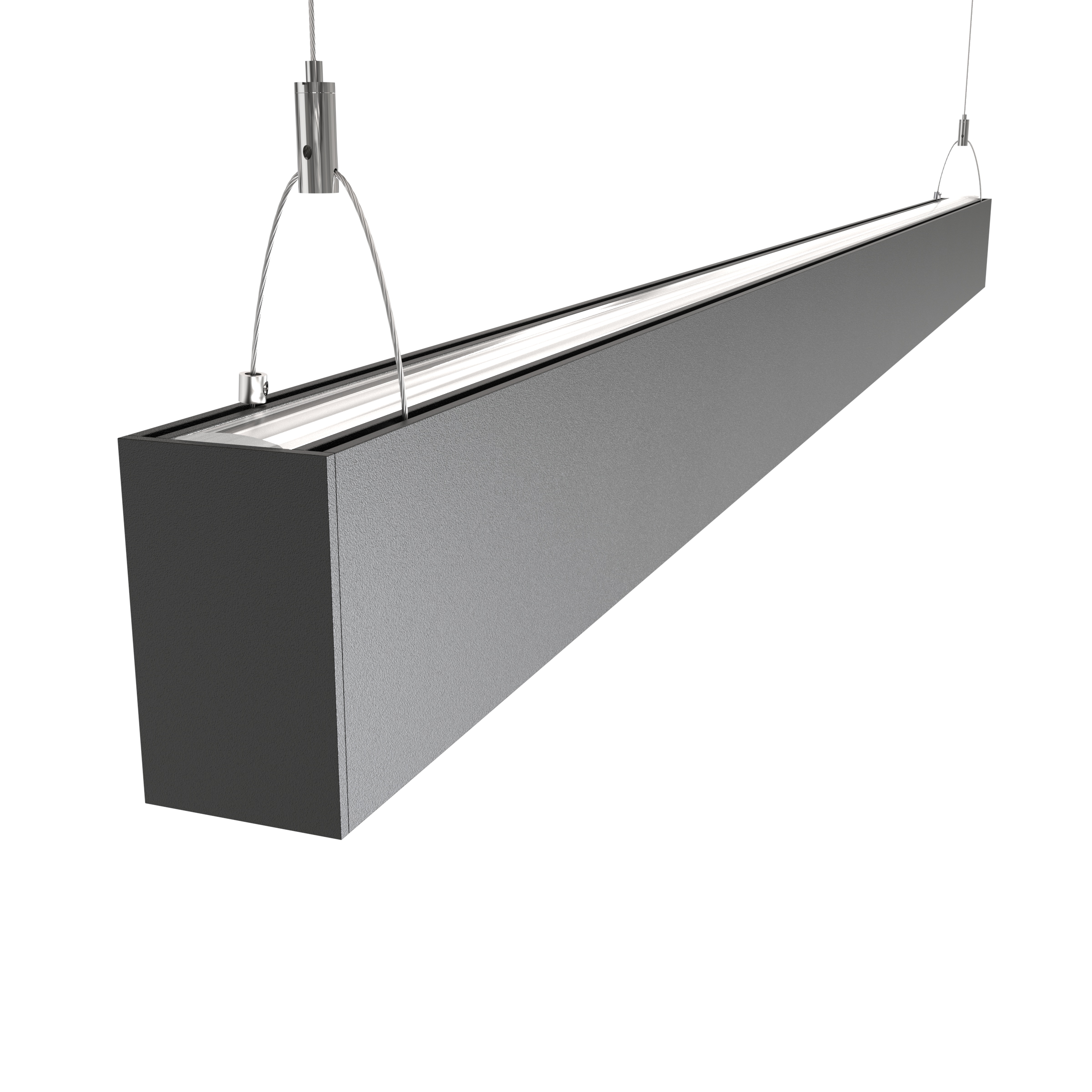

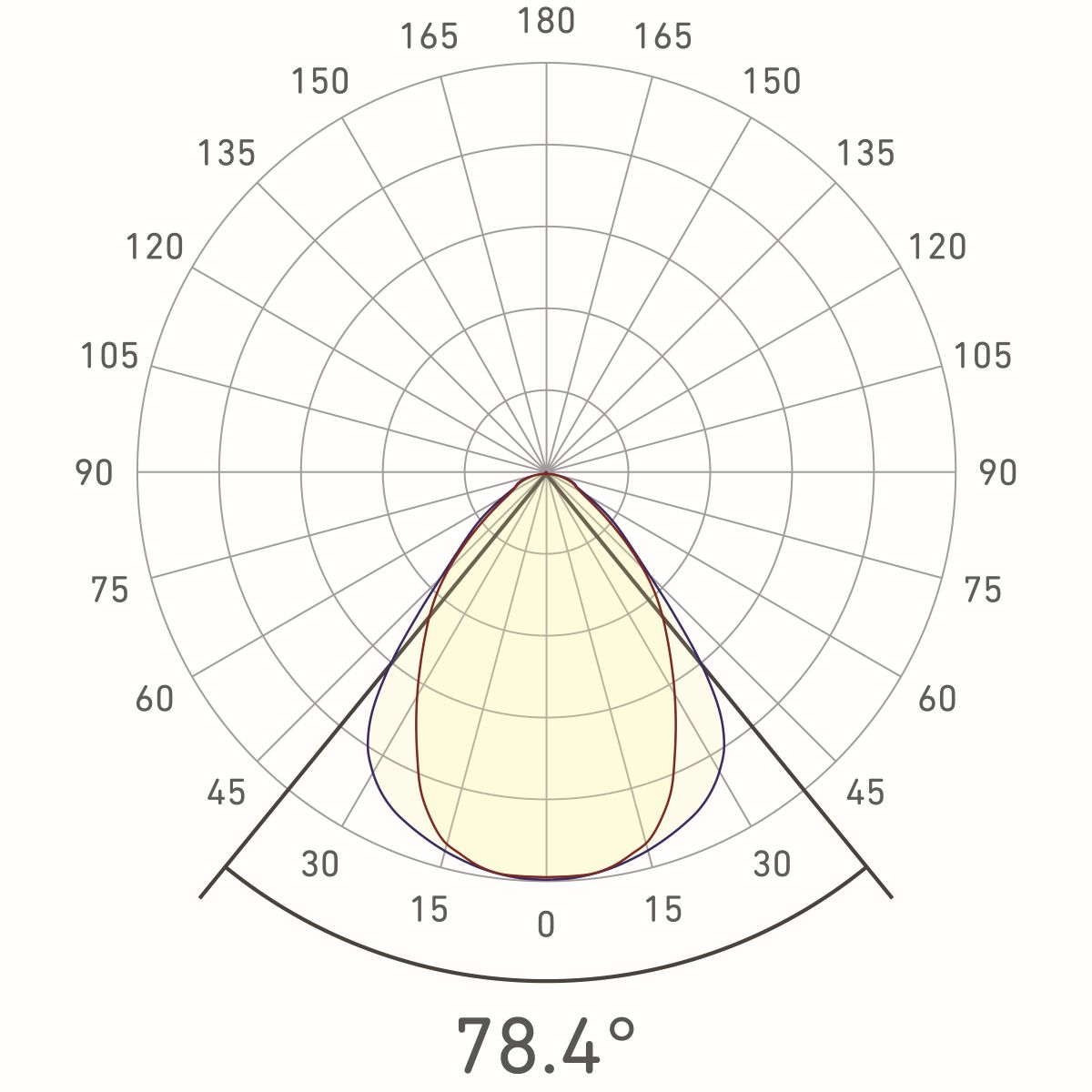

• Light Distribution: Direct, indirect, or direct/indirect.
• UGR: Low glare configurations available with innovative dual extruded microprismatic lenses.
• Output: Up to 5128lumens/meter and 118lumens/watt
• Control: DALI, 1-10V, DMX, phase control and wireless options upon request.
• Quality: High-quality light with <1% output ripple
• Compliance: WELL compliant, dimmable to 0%
• Finishes: RAL, special powder coating.
• Extras: Integral emergency. Integral spotlights upon request. Integral proximity sensors upon request.
• Power: ±1W
• Lumen Output : ±5%
• TM65 and TM66: available upon request.
