Arc 45 Optic

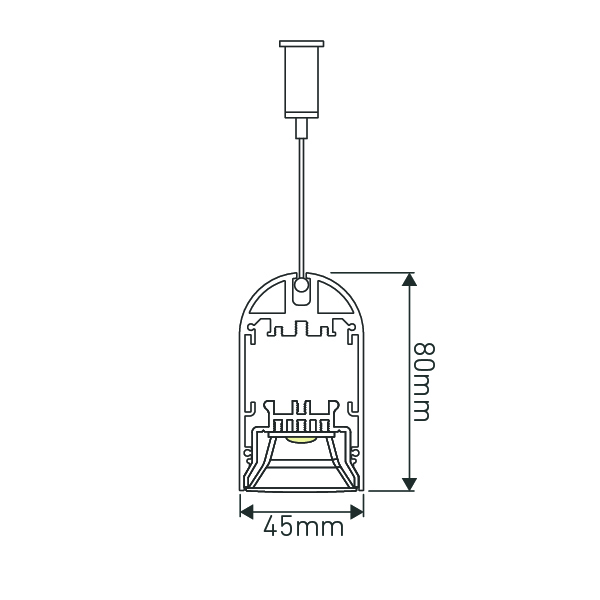

Arc 45 is a decorative and innovative suspended lighting platform. Its curved 45mm-wide linear system seamlessly integrates continuous opal or prismatic light ribbons, advanced optics in a variety of colors and beam angles, and Powergear's 3-circuit or 3-circuit DALI track. The luminaire is a versatile suspended solution and offers a full range of power outputs, CCTs, and CRI options.

Key Features

• Lens Options: 60°, 80° batwing or asymetrical, with Matt White, Matt Black or Chrome shades.
• Configurations: Individual 4 cell modules, and multiples of 7 cells.
• UGR: Low glare configurations available with a variety lens and shade configurations.
• Output: Up to 4681lumens/meter and 156lumens/watt
• Control: DALI, 1-10V, DMX, phase control and wireless options upon request.
• Quality: High-quality light with <1% output ripple
• Compliance: WELL compliant, dimmable to 0%
• Finishes: RAL, special powder coating.
• Extras: Integral emergency. Integral spotlights upon request. Integral proximity sensors upon request.
• Power: ±1W
• Lumen Output : ±5%
• TM65 and TM66: available upon request.
• Integral Drivers and Emergency gear where lengths permit.
