H Beam
Configure this product in 3 easy steps
H Beam
Linear
Product details

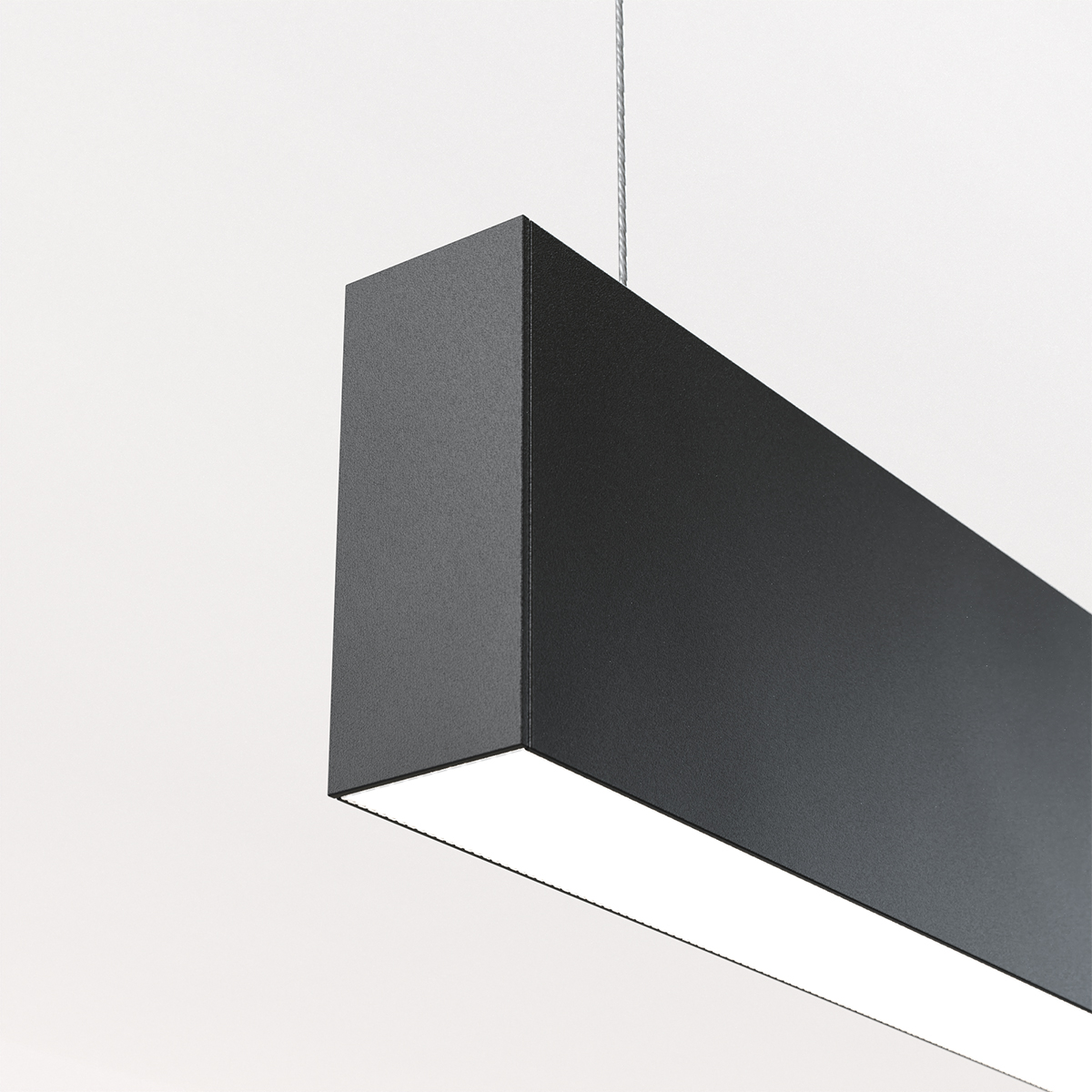

H Beam is a compact and streamlined, suspended or wall mount fixture. The extruded aluminium channel provides both direct and indirect illumination. Integral driver configuration with flush lens. Individual or continuous row mounting. A low UGR option is available with a prismatic lens. IP40 rated.
Key Features
- Lens Options: Flush or drop lens
- Mounting Configurations: Available as individual fixtures, continuous runs, or configured shapes
- Light Distribution: Direct/indirect, indirect-only, or direct-only
- Output Options: Four standard light output levels
- Dynamic Lighting: Tunable white and RGBW available
- Control Gear: Integral control gear included
- Control Protocols: Compatible with DALI, 1–10V, DMX, and phase dimming
- Dimming Capability: Smooth dimming down to 0%
- Light Quality: High-quality light with <1% output ripple current
- Sensors: Full range of integrated sensors, including DALI/DSI digital dimming and daylight harvesting
- Finishes: Available in RAL colours, special powder coatings, metal plates, or acoustic finishes
- LED Options: Premium and standard LED selections
- Add-ons: Integral emergency lighting, Casambi wireless control, Power over Ethernet (PoE) support
Speak to us for product information or request a quote
Click to access our Contact Us page where you can send us an enquiry or request a quotation.
Make enquiry
Dimensions
Distribution
