Lightplane 1 Concave Recessed

Configure this product in 3 easy steps

Lightplane 1 Concave Recessed

Product details

Lightplane 1 Concave Recessed Trim is a small, recessed slot light with a trim. The fixture features arching, interior sides that lead to a slightly recessed lens within the channel. The fixture is available with multiple lamping options including LED, tunable white LED and RGB+W colour-changing LED.

  • Flush lens
  • Individual fixture or continuous run
  • Direct distribution
  • Up to 3000 lumens/ meter and 95 lumens/ watt
  • Three standard output options
  • All LDT/IES files available on through configurator.
  • Tunable white and RGBW options
  • Remote control gear
  • DALI, 0-10V, 1-10V, DMX & phase control available
  • Dimming down to 0%
  • High quality of light thanks to <1% output ripple current
  • Remote sensors available (including DALI/DSI Digital Dimming and daylight harvesting)
  • RAL + Special powder coating, plates or acoustic finishes
  • Premium and standard LED options
  • Extras and add ons include remote emergency, Casambi & Power over Ethernet (PoE).
Speak to us for product information or request a quote
Click to access our Contact Us page where you can send us an enquiry or request a quotation.
Make enquiry
Contact

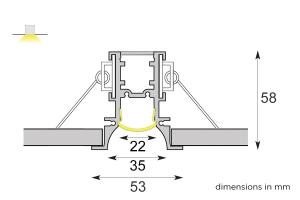

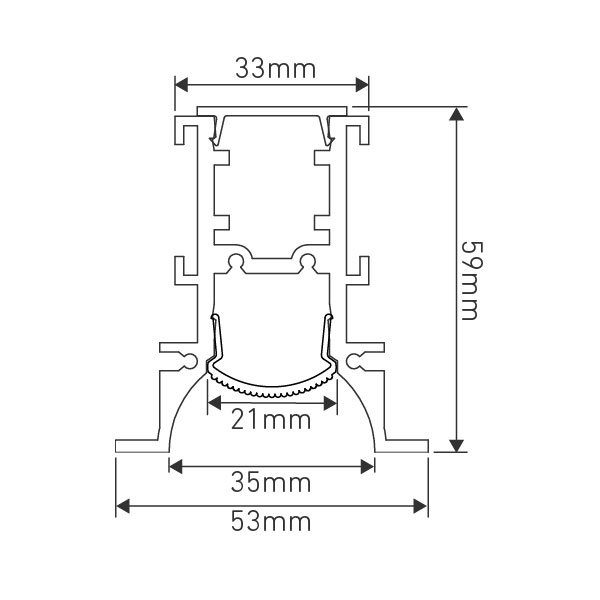

Dimensions

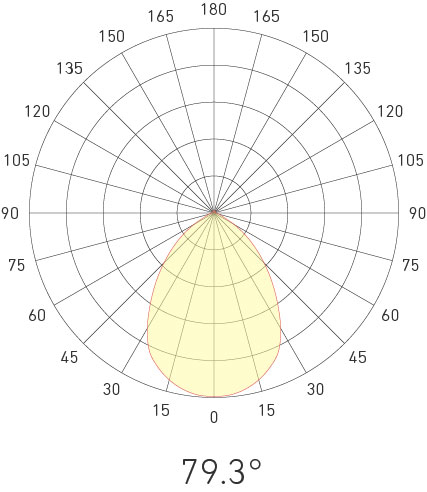

Distribution

Direct
