Lightplane 3.5

Configure this product in 3 easy steps

Product details

Lightplane 3.5 is a compact and streamlined luminaire with a channel that provides direct illumination. The luminaire is available with several LED lamping options including multiple outputs and CCTs, tunable white and colour-changing RGB+White. Driver in integral.

  • Flush lens or drop lens
  • Individual fixture, continuous run or configured shape
  • Direct or indirect distribution
  • Integrated spot lights available
  • Up to 5000 lumens/ meter and 120 lumens/ watt
  • All LDT/IES files available on through configurator.
  • Tunable white and RGBW options
  • Integral control gear
  • DALI, 0-10V, 1-10V, DMX & phase control available
  • Prismatic diffuser and softening lens available for low UGR (UGR <19)
  • Appropriate product for WELL compliant designs
  • Dimming down to 0%
  • High quality of light thanks to <1% output ripple current
  • Full range of integrated sensors available (including DALI/DSI Digital Dimming and daylight harvesting)
  • RAL + Special powder coating, plates or acoustic finishes
  • Premium and standard LED options
  • Extras and add on: integral emergency, Casambi & Power over Ethernet (PoE).
Speak to us for product information or request a quote
Click to access our Contact Us page where you can send us an enquiry or request a quotation.
Make enquiry
Contact

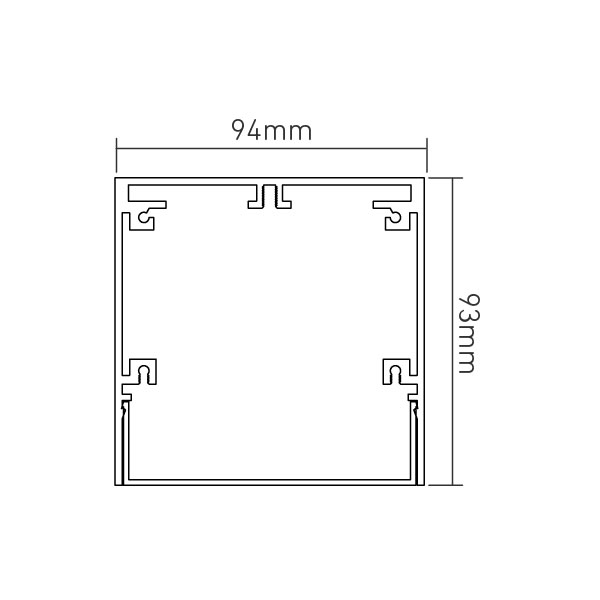

Dimensions

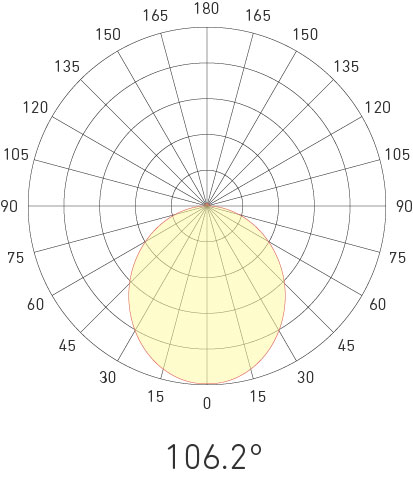

Distribution

Direct
