Triplane
Configure this product in 3 easy steps
Triplane
Linear
Product details

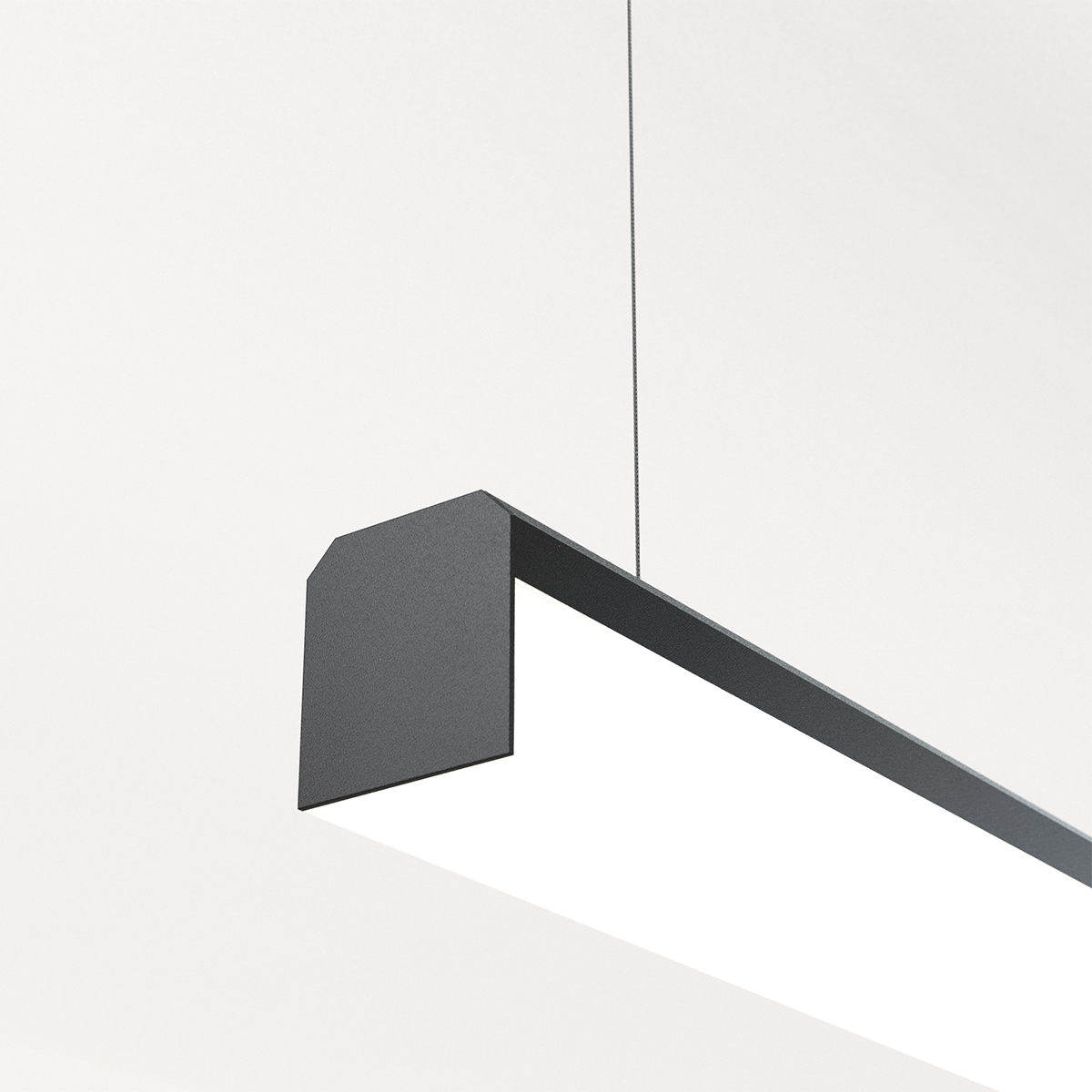

Triplane features three-side illumination from a 68mm lensed channel. Extremely efficient, the white opal, acrylic lens is impact-resistant. Individual or continuous row mounting. Remote driver. Available in suspended and surface models.
- Drop lens
- Individual fixture, continuous run or configured shape
- Direct distribution
- Up to 5000 lumens/ meter and 110 lumens/ watt
- Three standard output options
- All LDT/IES files available on through configurator.
- Tunable white and RGBW options
- Generally remote control gear (integral control gear available using Ultraflat drivers)
- Dimming down to 0%
- High quality of light thanks to <1% output ripple current
- Full range of integrated sensors available (including DALI/DSI Digital Dimming and daylight harvesting)
- RAL + Special Powder coating, plates or acoustic finishes
- Premium and standard LED Options
- Extras and add on: remote Emergency, Casambi & Power over Ethernet (PoE).
Speak to us for product information or request a quote
Click to access our Contact Us page where you can send us an enquiry or request a quotation.
Make enquiry

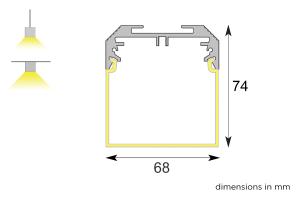

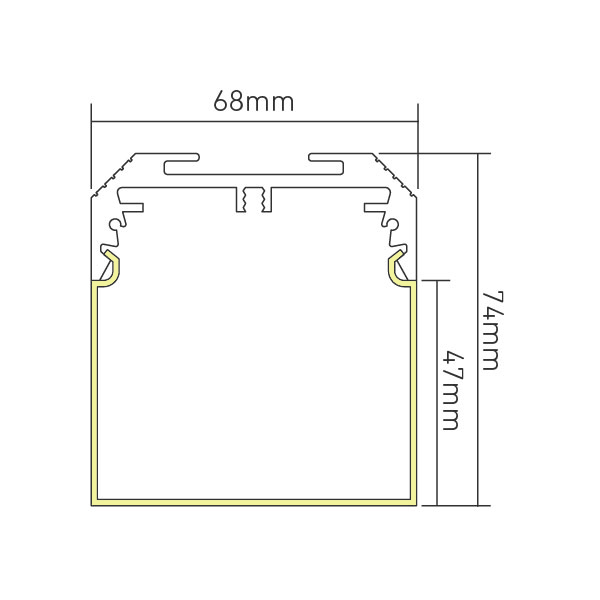

Dimensions

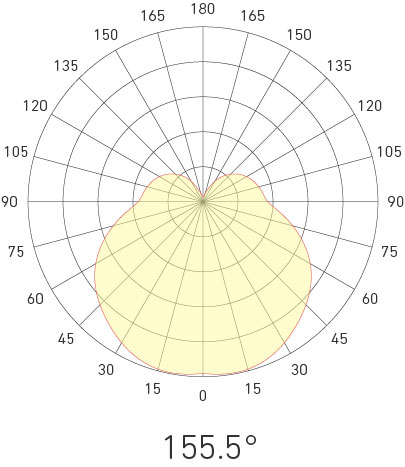

Distribution
