Five Bow H

Configure this product in 3 easy steps

Product details

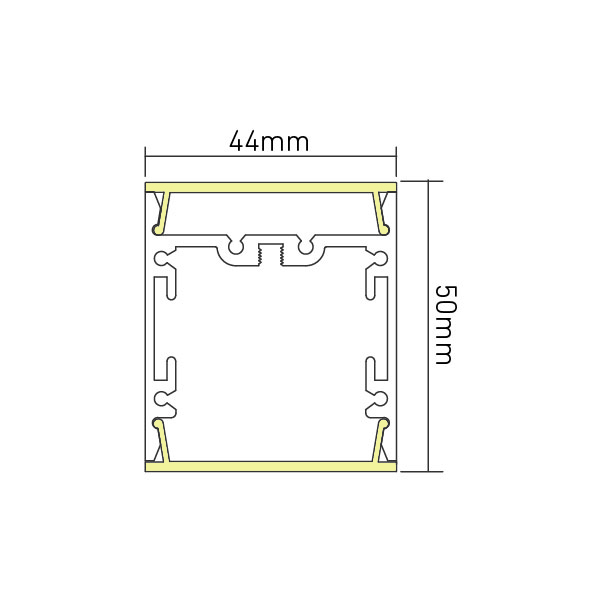

Five Bow H is a suspended direct-indirect, wall and ceiling luminaire. With a cross section dimension of just 44mm, the Five Bow body houses a standard LED driver integral to the channel, creating a remarkably low-profile luminaire. IP40 rated.

  • Flush or drop lens
  • Available as individual fixture, continuous run or configured shape
  • Direct, indirect or direct/Indirect distribution
  • Up to 4000 lumens/ metre and 151 lumens/ watt
  • Three standard output options
  • All LDT/IES files available on through configurator
  • Tunable white and RGBW options
  • Integral control gear
  • DALI, 0-10V, 1-10V, DMX & phase control availableDimming down to 0%
  • High quality of light thanks to <1% output ripple current
  • Full range of integrated sensors available (including DALI/DSI Digital Dimming and daylight harvesting)
  • RAL + special powder coating, plates or acoustic finishes
  • Premium and standard LED options
  • Extras and add ons include remote emergency, Casambi & Power over Ethernet (PoE).
